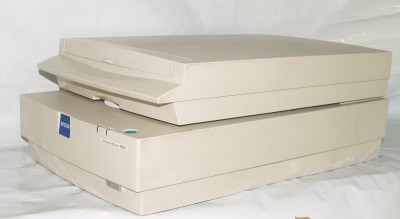

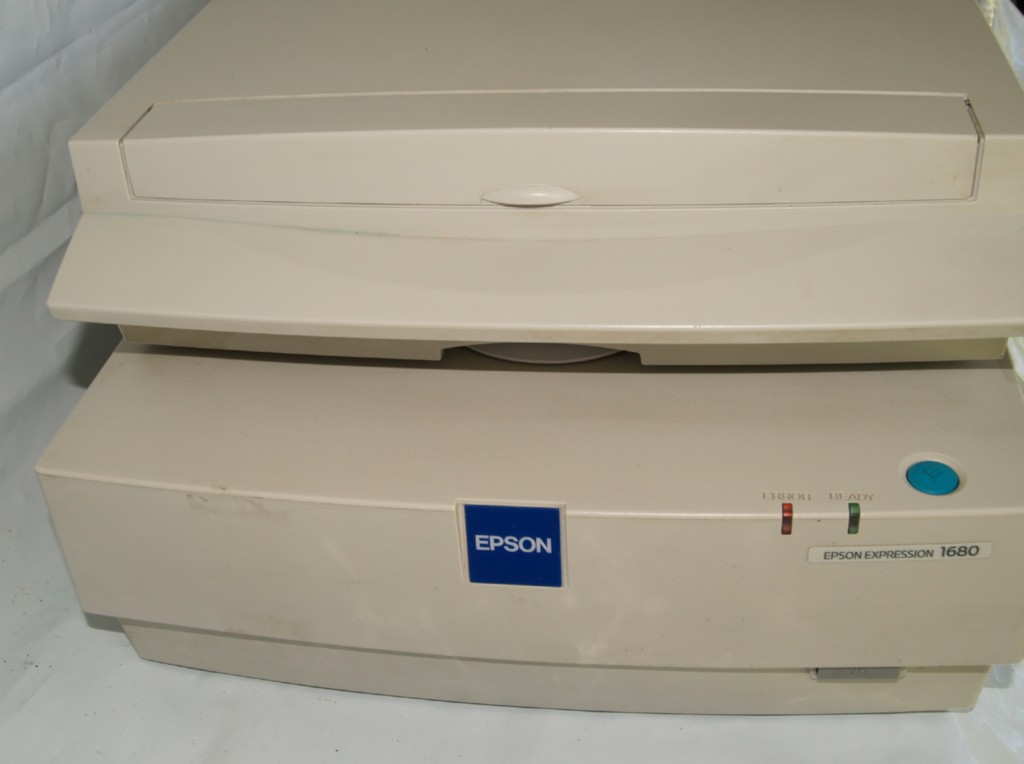

Epson 1680 Expression Scanner & EU-35 Transparency Unit

The scanner comes from a working environment.

The item works well and has been tested, there are a few scuff marks here and there but does not detract from this professional unit.

There is no software but is easily downloaded from the Epson website as I did to run this machine.

Specifications

Scanner Type

• Flatbed color image scanner

Photoelectric Device

• Color MatrixCCD line sensor

Optical Resolution

• 1600 dpi

Hardware Resolution

• 1600 x 3200 dpi with Micro Step Drive technology

Maximum Resolution

• 12800 x 12800 dpi with software interpolation

Effective Pixels

• 13,600 x 18,720 pixels (1600 dpi)

Color Hardware Bit Depth

• 48-bits per pixel internal, 48-bits per pixel external (External bit depth is selectable to 48 bits depending on the image editing software.)

Grayscale Hardware Bit Depth

• 16-bits per pixel internal, 16-bits per pixel external (External bit depth is selectable to 16 bits depending on the image editing software.)

Optical Density

• 3.6 Dmax

Scaling (Zoom)

• 50% to 200% (1% step)

Brightness

• 7 levels

Focus Control

• Dual Focus Control

Transparency Unit

• 8.5" x 11.7" Transparency Adapter with holders for 35mm slides, film strips, 4" x 5" and 2-1/4" transparencies.

Automatic Document Feeder

• Optional

Optional Equipment

• 30-page Automatic Document Feeder.

Hardware and Software Details

Buttons

• 1 button; Start

Maximum Read Area

• 8.5" x 11.7" (216mm x 297mm)

Light Source

• Xenon gas cold cathode fluorescent lamp

Interface

• USB 1.1, SCSI-2

Scanning Speed

• 1600 dpi draft mode: Monochrome 3.1 msec/line; Full color 9.2 msec/line

Reliability

• MCBF - 100,000 cycles

Environment Conditions

• Temperature: Operating 41* F to 95* F (5 to 35*C), Humidity: Operating 10% to 80%, storage 10% to 85% (no condensation)

Power Requirements

• Voltage: AC100V - 120V, 220V - 240V, Frequency: 50 - 60hz, Power Consumption: 30W operating without optional unit, 50W operating with optional unit.

Windows Requirements

• IBM compatible PC with Pentium equivalent or higher processor. SCSI: Requires ASPI-compliant compatible Fast SCSI, Ultra or Ultra 2 SCSI PCI card. USB: USB port equipped systems with Windows 98 Second Edition (factory installed), Windows 2000, Windows Me or Windows XP. 128MB RAM recommended. Additional Windows requirements: CD-ROM drive (4x or faster), mouse or other pointing device.

Macintosh Requirements

• PowerPC processor or higher. SCSI: Requires Power Macintosh system with built-in SCSI port or a Mac-compatible PCI SCSI/SCSI-2 card with Mac OS 8.0 to 9.x. USB: iMac, G3, G4 or USB port equipped Power Macintosh system with Mac OS 8.6 to 9.x, OS X 10.1.4 or later. 128MB RAM recommended. Additional Macintosh requirements: CD-ROM drive (4x or faster), mouse or other pointing device.

Software

• LaserSoft Imaging™ SilverFast® Ai 6 (requires Mac OS 9.1 to 9.2x, OS X 10.1.4 or later), Adobe Photoshop Elements 2.0, Monaco Ezcolor 2.5, ArcSoft PhotoStudio, ArcSoft PhotoBase, ArcSoft Panorama Maker, EPSON Scan Scanning Software

Physical Dimensions

• Width: 13.1" (332mm), Depth: 22.1" (562mm), Height: 5.2" (133mm), Weight: 18.7 lb (8.5 kg approx.)

Please feel free to email with any questions.
