| CPU |
CORE i5 750/2.66GHz/8MB CACHE/LGA1156 |
CPU Number: i5-750
Intel® Smart Cache: 8 MB
Clock Speed: 2.66 GHz |
| Mother Board |
GA-P55-UD3 Click for all features
|
Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU |
| Memory |
4GB Ultra fast DDR3 Memory |
| Hard Disk |
500 GB SATA II Hard Disk Drive (Upgrade to 1TB HDD +$50)
|
| Optical |
22 x Dual Layer DVDRW with Nero Burning Rom |
| Audio |
High Quality High Definition Audio |
- Realtek ALC888 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF In/Out
- Support for CD In
|
| LAN |
RTL8111D chip (10/100/1000 Mbit) |
| VGA |
1GB Nvidia 9400GT Video Card (upgrade to 1GB 9800GT +$100) |
|
| USB |
Integrated in the ChipsetUp to 14 USB 2.0/1.1 ports (10 on the back panel, 4 via the USB brackets connected to the internal USB headers) |
| Case |
ATX Tower case with 550W power supply (upgrade to 680w +$20)
|
| Warranty |
12 Months Back To Base Warranty |
| Monitor |
N/A |
| Condition |
Brand New |
| Software |
NEW released Windows 7 Home Premium installed & supplied with disc& key, all drivers come with the computer
|
| Keyboard and Mouse |
N/A |
| |
|
| |
|
|
|
|
|
| |
| |
|
Ultra Durable 3
 GIGABYTE
Ultra Durable 3 design, featuring 2 ounces of copper for both the Power
and Ground layers which dramatically lowers system temperature by
delivering a more efficient spreading of heat from critical areas of
the motherboard such as the CPU power zone throughout the entire PCB.
GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which
helps to reduce electrical waste and further lowers component
temperatures. A 2oz Copper layer design also provides improved signal
quality and lower EMI (Electromagnetic Interference), providing better
system stability and allowing for greater margins for overclocking...more |
 |
| |
|
Benefits of 2 oz Copper PCB

• Cooler than traditional motherboards • Enhanced durability • Improved energy efficiency • Greater margins for overclocking... more |
 |
| |
|
Smart 6- A Smarter way for PC system Management GIGABYTE
Smart 6™ is designed with user-friendliness in mind, and offers a
combination of 6 innovative software utilities that provide easier and
smarter PC system management. Smart 6™ allows you to speed up system
performance, reduce boot-up time, manage a secure platform and recover
previous system settings easily with a click of the mouse button.
|
 |
| |
|
Windows® 7 WHQL Certified The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft® for an Intel-based motherboard, setting the standard for future Windows 7 certified motherboards...more |
 |
 |
|
Dynamic Energy Saver™ 2 GIGABYTE
Dynamic Energy Saver™ 2 incorporates a host of intelligent features
that use a proprietary hardware and software design to considerably
enhance PC system energy efficiency, Reduce power consumption and
deliver optimized auto-phase-switching for the CPU, Memory, Chipset,
VGA, HDD, and fans with a simple click of button. |
 |
| |
|
Intel® Core i7/ Core i5 LGA 1156 Processors

The
Intel brand new computing architecture based on the innovation of
micro-architecture transforms 3-chip solutions to a 2-chip platform.
The next generation Intel® Core™ i7/ Core™ i5 processors
with LGA1156 package integrate graphics and memory controller to
support dual channel DDR3 memory. Supporting Intel Turbo Boost
technology and Hyper-Threading Technology, Intel® Core™ i7/ Core™ i5 processors provide the overwhelming performance with optimized power efficiency. |
 |
 |
|
DDR3 2200+ Support P55-UD3
support Intel Core™ i7/ Core™ i5 processors delivering native support
for DDR3 memory up to 2200+MHz by the enhanced design of GIGABYTE,
Intel Core™ i7/ Core™ i5 processors feature the memory controller
integrated directly into the processor die, rather than as part of the
Northbridge as in previous generations, allowing for faster memory
performance. * Please refer "Memory Support List" for memory support information |
 |
 |
|
XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease Accelerating
system performance is made easy with the user friendly GIGABYTE eXtreme
Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a
quick and easy way to boost your hard drive performance simply by
adding another hard drive. |
 |
 |
|
AutoGreen- Greening your PC via Bluetooth cellphone AutoGreen
technology can automatically save power for you simply by your
bluetooth cell phone when you are away from your computer |
 |
| |
|
Multi-display support with ATI CrossFireX P55-UD3
supporting ATI CrossFireX delivers the ultimate in graphics performance
for gaming enthusiasts who demand the highest frame rates without
compromising on resolution. |
 |
|
|
| |
|
|
| CPU |
- Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor in the LGA1156 package
(Go to GIGABYTE's website for the latest CPU support list.)
- L3 cache varies with CPU
|
| Chipset |
- Intel® P55 Express Chipset
|
| Memory |
- 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
- Dual channel memory architecture
- Support for DDR3 2200/1333/1066/800 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest memory support list.) |
| Audio |
- Realtek ALC888 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF In/Out
- Support for CD In
|
| LAN |
- 1 x RTL8111D chip (10/100/1000 Mbit)
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 2 x PCI Express x1 slots
- 3 x PCI slots
|
| Multi-Graphics Technology |
- Support for ATI CrossFireX™ technology
|
| Storage Interface |
Intel® P55 Express Chipset:
- 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
|
| USB |
- Integrated in the Chipset
- Up to 14 USB 2.0/1.1 ports (10 on the back panel, 4 via the USB brackets connected to the internal USB headers)
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x floppy disk drive connector
- 1 x IDE connector
- 8 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 2 x system fan headers
- 1 x power fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x CD In connector
- 1 x S/PDIF In header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x parallel port header
- 1 x clearing CMOS jumper
|

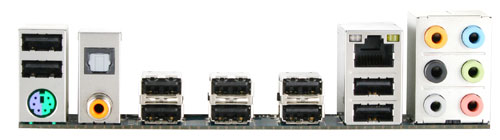

| Back Panel Connectors |
- 1 x PS/2 keyboard or PS/2 mouse port
- 1 x coaxial S/PDIF Out connector
- 1 x optical S/PDIF Out connector
- 10 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
|
| I/O Controller |
- iTE IT8720 chip
|
| H/W Monitoring |
- System voltage detection
- CPU/System temperature detection
- CPU/System/Power fan speed detection
- CPU overheating warning
- CPU/System/Power fan fail warning
- CPU/System fan speed control
|
| BIOS |
- 2 x 16 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
|
| Unique Features |
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress BIOS Rescue
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune
- Support for Dynamic Energy Saver™ 2
- Support for Smart 6™
- Support for Q-Share
|
| Bundle Software |
- Norton Internet Security (OEM version)
|
| Operating System |
- Support for Microsoft® Windows 7/Vista/XP
|
| Form Factor |
- ATX Form Factor; 30.5cm x 24.4cm
| |
|
|
|
