Wirelessly Share Broadband Internet Connection
Two USB 2.0 Ports to Connect to Storage Devices/Printers
802.11g, 802.11b Compatible
Advanced Firewall & Parental Control
Integrated Functions With 6 Built-in Servers for DHCP, Personal Web, FTP, File/Printer**/Multimedia Sharing
Supported HD formats: FAT16, FAT32
3 Years Warranty
D-Link®, an industry leader in networking, introduces another breakthrough in wireless connectivity – the AirPlus Xtreme® G Wireless 108G USB Storage Router DI-624S. Powered by D-Link 108G Technology, wirelessly access and share files saved on USB storage drives* among network users at a maximum wireless signal rate of up to 108Mbps**.
The DI-624S Wireless 108G USB Storage Router creates an 802.11g wireless network and shares a single broadband Internet connection throughout your home or office. Featuring two USB ports, USB hard drives can be attached and shared with users connected to the router. Access saved media files or simply back up files.
The integrated advanced parental control features allow everyone in your family to have a fun yet safe time accessing online content. For increased protection, the DI-624S includes a free limited trial of Trend Micro™ Home Network Security***. Trend Micro Home Network Security provides global or per-user parental control settings, virus protection, and spyware detection to protect your network.
For maximum security, the DI-624S also provides dual firewall functionality, with both Network Address Translation (NAT) and Stateful Packet Inspection (SPI) technology to help secure and protect your network from hackers and malicious attacks. For wireless users, you can use WPA-PSK encryption to protect your wireless data.
Setting up your DI-624S is a straightforward process using the Setup Wizard and user-friendly web-based management utility. For computers running Windows® XP Service Pack 2, take advantage of Windows® Connect Now and simplify the configuration of your wireless settings. Simply store configuration information on a USB flash drive, and then transfer these same settings to other wireless devices. Reduce the hassle of configuring wireless settings for multiple devices.
The DI-624S Wireless 108G USB Storage Router is Wi-Fi certified for industry wide interoperability, and is backward compatible with any existing 802.11b devices you may already own. The built in 4-port switch allows you to connect up to four Ethernet-enabled devices such as additional computers or network printers.
Packed with features, the DI-624S brings you a multifaceted wireless network. With 802.11g wireless connectivity, the capability to attach USB storage, and advanced parental controls, the DI-624S is your total wireless networking solution.

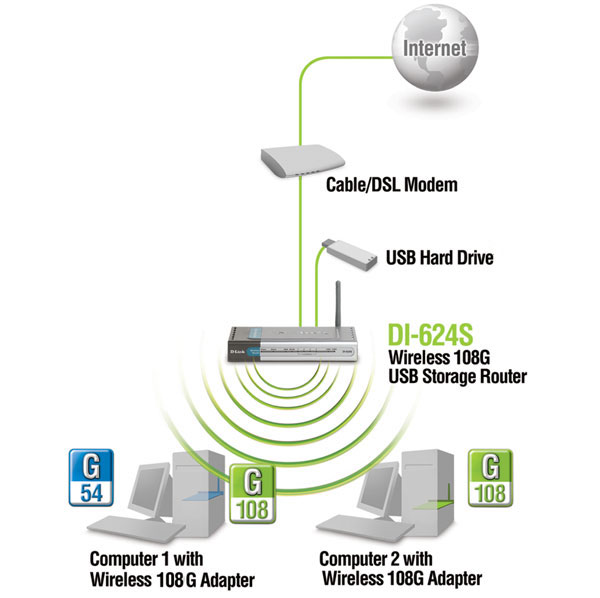

With the D-Link DI-624S Wireless 108G Storage Router, you can create a personal web server for Internet users to access your favorite photos, and share files, music video and printers** wirelessly across the rooms at home or in the office. This feature-packed router is equipped with high-speed USB ports for you to attach storage drives and printers** to it. Powered by D-Link 108G Technology, it lets your family and office co-workers access files in your storage drives and print documents and web pages on your printers at wireless speeds of up to 108 Megabits per second. *
Share Internet Access.
The DI-624S Wireless 108G Storage Router creates an 802.11g wireless network and shares a single broadband Internet connection throughout your home or office. Using its built-in DHCP server, the router allows multiple users to logon to the web without the need to run wires to the broadband modem.
Share Disks and Printers.
Through the USB ports, you can attach up to 2 hard disks or flash memory drives to this router as network storage. Files, photos and music can be saved in this network storage and shared across the network through the integrated FTP server or file server function. Or, you can save files in this network storage simply as backup copies. You can also connect a USB printer** to this router for other users to access. The shared printer will print out their files or web pages directly from their computers.
Create Personal Web Site.
The DI-624S comes with a built-in web server, so you can set up your own web site directly on this router. If you have a fixed IP address, setting up your personal web site is easy. The DI-624S supports Dynamic Domain Name Server (DDNS) to facilitate your web site name registration task. With a personal web site, you can now put in things like your family photos for friends from afar to look at through the Internet.
Music and Multimedia Center.
With a built-in UPnP AV server, the DI-624S makes it easy to output your digital photos, video clips and MP3 inside your network storage to your high-quality audio/video system. Photos, streaming video and music output to your TV and stereo system can travel at high wireless speeds of up to 108Mbps from the DI-624S-attached disk drives and with Quality of Service (QoS) Wi-FiTM Multi-Media (WMM) support. *
Network Security.
The integrated advanced parental control allows everyone in your family to have a fun yet safe time accessing on-line content. For additional security, the DI-624S also provides Stateful Packet Inspection (SPI) firewall to help secure and protect your network from hackers and malicious attacks. Wireless data protection and user authentication are provided with WPA-PSK and the advanced WPA2 AES, besides the usual WEP encryption.
Easy Setup.
Setting up your DI-624S is a straightforward process using the Setup Wizard and userfriendly web-based management utility. For computers running Windows XP Service Pack 2, take advantage of Windows Connect Now and simplify the configuration of your wireless settings. The DI-624S is Wi-FiTM certified for industry wide interoperability, and is backward compatible with any existing 802.11b devices you may already own. The built in 4-port switch provides for ready connection to 4 Ethernet-enabled devices such as additional computers or network printers.


D-link DI-624S AirPlus Xtreme G Wireless 108G USB Storage Router
| Specifications |
| Standards |
| • |
IEEE 802.11g |
| • |
IEEE 802.11b |
| • |
IEEE 802.3 |
| • |
IEEE 802.3u | |
| VPN Pass Through / Multi-Sessionst |
|
| Device Management |
| • |
Web-Based - Internet Explorer v6 or later; Netscape Navigator v7 or later; or other Java-enabled browsers |
| • |
DHCP Server and Client | |
| Wireless Signal Rates* With Automatic Fallback |
| • |
D-Link 108G: 108Mbps |
| • |
54Mbps |
| • |
48Mbps |
| • |
36Mbps |
| • |
24Mbps |
| • |
18Mbps |
| • |
12Mbps |
| • |
11Mbps |
| • |
9Mbps |
| • |
6Mbps |
| • |
5.5Mbps |
| • |
2Mbps |
| • |
1Mbps | |
| Security |
| • |
WPA-PSK (Pre-Shared Key) |
| • |
64/128-bit WEP | |
| Media Access Control |
|
| Wireless Frequency Range |
|
| Wireless Signal Range* |
| • |
Indoors: Up to 328 ft (100 meters) |
| • |
Outdoors: Up to 1312 ft (400 meters) | |
| Modulation Technology |
| • |
Orthogonal Frequency Division Multiplexing (OFDM) |
| • |
Complementary Code Keying (CCK) | |
| Receiver Sensitivity* |
| • |
54Mbps OFDM, 10% PER,-71dBm) |
| • |
48Mbps OFDM, 10% PER,-71dBm) |
| • |
36Mbps OFDM, 10% PER,-78dBm) |
| • |
24Mbps OFDM, 10% PER,-82dBm) |
| • |
18Mbps OFDM, 10% PER,-85dBm) |
| • |
12Mbps OFDM, 10% PER,-87dBm) |
| • |
11Mbps CCK, 8% PER,-85dBm) |
| • |
9Mbps OFDM, 10% PER,-90dBm) |
| • |
6Mbps OFDM, 10% PER,-91dBm) |
| • |
5.5Mbps CCK, 8% PER,-88dBm) |
| • |
2Mbps QPSK, 8% PER,-89dBm) |
| • |
1Mbps BPSK, 8% PER,-92dBm) | |
| Wireless Transmit Power |
|
| External Antenna Type |
|
| Operating Temperature |
| • |
32°F to 131°F ( 0°C to 55°C) | |
| Humidity |
| • |
95% Maximum (non-condensing) | |
| Power Input |
| • |
Ext. Power Supply DC 5V, 2.5A | |
| Safety & Emissions |
|
| Dimensions |
| • |
L = 7.5 inches (190.5mm) |
| • |
W = 4.6 inches (116.84mm) |
| • |
H = 1.375 inches (35mm) | |
| Weight |
|
| Warranty |
|
