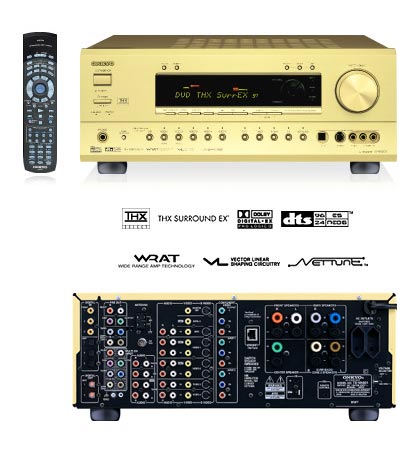

Onkyo TX-NR801 THX Select 7.1-Channel AV Receiver Gold

Onkyo has taken a decidedly different course in the creation of an entirely new category for home entertainment with the TX-NR801.

A masterpiece of technology and functionality, the TX-NR801 includes a value-added feature only Onkyo can provide-Net-Tune home network capability. The Ethernet connection* on the back lets you stream your MP3, WAV and WMA files from your computer, in addition to being your passport to the music of the world via Internet radio.

Onkyo's exclusive VLSC (Vector Linear Shaping Circuitry) smoothes the pulse noise inherent in the Internet radio signal-as well as noise in your movies and music-to create an incomparable listening environment. Connectivity is further enhanced with upconversion of composite or S-Video signals to component video.

The TX-NR801 further distances itself from the rest with high-grade parts that provide a smooth and seamless listening experience from the latest generation in digital surround sound formats. Just what you'd expect from a company committed to providing you with the latest in state-of-the-art features.

When you're looking for the ultimate in movie and music reproduction, unlock the full potential of an A/V receiver and expand your home entertainment experience with the TX-NR801.

More information is available here.

Net-Tune™
Bringing a world of music into your home. From today, you can connect the receiver to your computers and Internet radio.

32 Bit (Dual) DSP Chip/s
For ideal playback of such wide range digital formats as DVD-Audio and Super Audio CD, Onkyo has incorporated innovative circuit topology based upon decades of high-end amplifier-design experience. The result is a flat response beyond 100 kHz.

VLSC* (Vector Linear Shaping Circuitry) Enlarge Image
Onkyo's exclusive VLSC employs a unique D/A conversion circuit to dramatically reduce digital pulse noise at the conversion stage. ( * Available in Select Markets )

Optimum Gain Volume Circuitry
Less than half the typical amount of attenuation is needed, so signals never come close to the noise floor.

Powered Zone2
Enjoy a stereo source in the main room and another in a separate room without an additional amplifier.

User-Friendly Design
Onkyo always considers ease of use. Color-coded multichannel inputs, pre-outs and dual banana plug compatible speaker posts take the guesswork out of matching the correct wires to the correct terminals–you get fast and easy connection. Also, Crossover Adjustment for bass management lets you set the crossover frequency at 40, 60, 80, 100, 120 or 150 Hz, depending on your speakers’ bass playback ability. Plus, a backlit, preprogrammed, learning remote gives you comfortable control in dark theater-like environments.

POWER OUTPUT
Front L/R: 160 W/ch
Center : 160 W
Surround L/R : 160 W/ch
Surround back L/R : 160 W/ch

Dynamic Power(front)
3 Ohms : 250 W/ch
4 Ohms : 210 W/ch
8 Ohms : 130 W/ch

Total Harmonic Distortion : 0.08 % (at rated power)
Frequency Response : 10 Hz-100 kHz (+ 1 dB, - 3 dB)

Signal-to-Noise Ratio
Line in : 100 dB (IHF-A, 0.5 V input)
Phono : 80 dB (IHF-A, 5 mV input)

Damping Factor : 60 at 8 Ohms

Input Sensitivity and Impedance
Line : 200 mv, 50 kOhms
Phono : 2.5 mV, 50 kOhms
Multi Channel Input: 200 mV, 50 kOhms; Subwoofer: 36 mV, 50 kOhms
Digital Input Coaxial : 0.5 Vp-p, 75 Ohms

Output Level and Impedance
Rec out : 200 mV, 470 Ohms
Pre out : 1 V, 470 Ohms
Line out : 200 mV, 470 Ohms

Tone Control
Bass :± 10 dB at 50 Hz
Treble : ± 10 dB at 20 kHz

TUNER SECTION
Usable Sensitivity
FM Mono : 11.2 dBf, 1.0 µV (75 Ohms IHF)
FM Stereo : 17.2 dBf, 2.0 µV (75 Ohms IHF)
AM : 30 µV

Signal-to-Noise Ratio
FM Mono : 76 dB, IHF-A
FM Stereo : 70 dB, IHF-A
AM : 40 dB

Total Harmonic Distortion
FM Mono/FM Stereo/AM : 0.2 %/0.3 %/0.7 %
FM Stereo Separation : 45 dB at 1 kHz/30 dB at 100 Hz-10 kHz

GENERAL
Dimensions (W x H x D) : 435 x 175 x 459 mm
Weight : 17.5 kg
