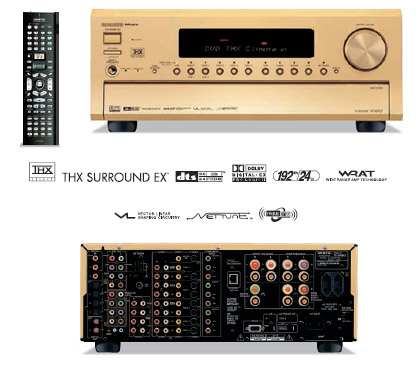

Onkyo TX-NR901 THX Select 7.1-Channel AVReceiver Gold

Emotion: Something that used to only be a reaction to what’s on the screen or floating through the air in dialogue or music. Onkyo emotion: A reaction before you’ve even attached the first cable of the TX-NR901. Relief comes from knowing this receiver gives you exclusive sound quality, performance features and high grade parts such as 192 kHz/24-bit DACs, dual 32-bit DSP chips, composite and S--Video to component video upconversion and our exclusive VL technology for a smooth digital signal. The convergence of home theater and home network manifests itself in Onkyo’s Net-Tune protocol which makes the TX-NR901 part of the only line of A/V receivers to boast of this ability. Most importantly, you have peace of mind knowing you have chosen a receiver ready to handle the technology and ever increasing demands of the movies and music of today—and tomorrow.

THX Select Certified
The TX-NR901 boasts the distinction of the exclusive THX Select badge of approval. This gives you assurance that this receiver passed (and often exceeds) THX’s numerous requirements in such areas as frequency response, distortion, power output, and stability.

Dolby Digital EX
Dolby Digital EX creates six full-bandwidth output channels from 5.1-channel sources. This is done using a matrix decoder that derives three surround channels from the two in the original recording. For best results, Dolby Digital EX should be used with movie soundtracks recorded with Dolby Digital Surround EX.

DTS 96/24
This format offers you the sound quality of the original 96-kHz, 24-bit master in 5.1-channel surround sound for music and movie soundtracks on DVDs encoded in DTS 96/24. Also, you won’t have to worry about buying a new DVD player. DTS 96/24 can be carried on DVD-Video, or in the video zone of DVD-Audio. This gives you the convenience of making it playable on all DVD players.

Color-Coded Inputs and Outputs
Onkyo’s commitment to bringing the most user-friendly designed products to market further manifests itself with color-coded inputs and outputs. Now you’ll no longer have worries about which wire goes to which input or output. Simply attach the color-coded label to the appropriate wire, attach the cable to the same colored input or output for fast and easy connection.

VLSC (Vector Linear Shaping Circuitry)
Conventional D/A conversion methods reduce digital pulse noise at the conversion stage but can’t remove it completely. Previously only available on Onkyo’s high-end components, VLSC (Vector Linear Shaping Circuitry) employs a unique D/A conversion circuit to overcome this problem. Data is converted between the sampling points and these discrete sampling points are joined with analog vectors in real-time to produce a smooth output wave form. The result—a noiseless, smooth analog signal based on the digital source.

Crossover Adjustment for Bass Management
Previously crossover frequency was fixed at 80 Hz. With Crossover Adjustment, you can set the frequency at 40/60/80/100/120 or 150 Hz depending on your speaker’s bass playback ability. This lets you more accurately match the performance characteristics of the subwoofer to your front speakers.

Component Video Upconversion
Convenience is upgraded with the ability to run just one cable from your receiver to your HDTV with composite/S-Video to component video upconversion. Hook up your video player, CD player, LD player—all your S-Video or composite video out components—to the back of the TX-NR901 and each signal will flow to your compatible TV or projector via one component video cable.

Net-Tune
Unprecedented access to radio stations around the world is made possible by Onkyo’s exclusive Net-Tune protocol. Hook up your TX-NR901 to a router or hub connected to your broadband modem via a high-speed Ethernet cable. Press the Net-Tune button on the front panel and you’re ready to surf the airwaves of cyberspace. You can also add new life to the existing content on your computer by hooking it up to the TX-NR901 via a standard network hub. You’ll agree, your MP3s, WAV, WMA files and Internet radio have never sounded so good.

AMPLIFIER SECTION
Power Output
All Channels............... 180W (6 Ω, 1 kHz, JEITA)
Total Harmonic Distortion ....... 0.08 % at rated power/0.08% at 1 W output
Frequency Response ......................................10 Hz-100 kHz: + 1 dB, - 3 dB
Damping Factor .............................................................. 60 at 8 Ohms

Input Sensitivity and Impedance
PHONO .......................................................................... 2.5 mV, 50 kOhms
LINE (CD, TAPE, DVD, VIDEO-1, 2, 3, 4) ........................... 200 mV, 50 kOhms
MULTI CH INPUT
FRONT L/R, CENTER, SURROUND L/R .................... 200 mV, 50 kOhms
SUBWOOFER ............................................................ 36 mV, 50 kOhms
COAXIAL ................................................................ 0.5 Vp-p, 75 Ohms

Output Level and Impedance
Rec out (TAPE, VIDEO-1-2) .............................................. 200 mV, 470Ohms
Pre out (SUBWOOFER) .................................................. 1 V, 470 Ohms

Tone Control
BASS .............................................................................. ± 10 dB at 50 Hz
TREBLE .......................................................................... ± 10 dB at 20 kHz

TUNER SECTION
Usable Sensitivity
FM Mono ............................ 11.2 dBf, 1.0 µV (75 Ohms IHF), 0.9µV (75 Ohms DIN)
FM Stereo ........................... 17.2 dBf, 2.0 µV (75 Ohms IHF), 23 µV (75 Ohms DIN)
AM ...................................... 30 µV
Signal-to-Noise Ratio
FM Mono/FM Stereo/AM.....................................76 dB, IHF/70 dB, IHF/40 dB
Harmonic Distortion
FM Mono/FM Stereo/AM.................................................. 0.2 %/0.3 %/0.7 %
FM Stereo Separation........................45 dB at 1 kHz/30 dB at 100 Hz-10 kHz

GENERAL
Dimensions (W x H x D) ............... 435 x 175 x 459 mm
Weight .............................................. 19.2 kg
