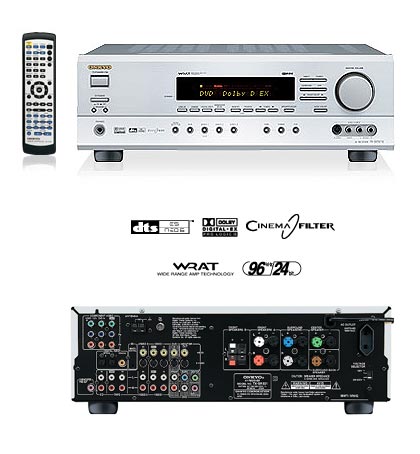

Onkyo TX-SR501 6.1-Channel A/V Surround Receiver Silver

With the TX-SR501, Onkyo has forever redefined how you will look at an entry-level home theatre receiver. Those new to home theatre will breathe a sigh of relief due to the user-friendly design, which incorporates color-coded inputs and outputs, a logically laid-out front panel and an easy-to-use remote control.

Those looking to upgrade their current home theatre receiver will be impressed with 6.1-channels, powered by a newly designed transformer to give you the all-enveloping surround sound of Dolby Digital EX and DTS-ES.

Then when you add Onkyo exclusives like WRAT (Wide Range Amplifier Technology) and CinemaFILTER, you have the smoothest sound at any volume. Add on a pair of wideband component video inputs and an output and you have an entry-level receiver ready to take care of the demands of today and the future.

More information is available here

CinemaFILTER
Restores the correct tonal balance of a movie soundtrack in the smaller environs of your home.

Optimum Gain Volume Circuitry
Less than half the typical amount of attenuation is needed, so signals never come close to the noise floor.

User-Friendly Design
Onkyo always considers ease of use. Color-coded multichannel inputs, pre-outs and dual banana plug compatible speaker posts take the guesswork out of matching the correct wires to the correct terminals–you get fast and easy connection. Also, Crossover Adjustment for bass management lets you set the crossover frequency at 60, 80, 100, 120 or 150 Hz, depending on your speakers’ bass playback ability. Plus, a preprogrammed, learning remote gives you comfortable control.

POWER OUTPUT
Front L/R: 65 W + 65 W (8 Ω, 20 Hz-20 kHz, FTC)
Center : 65 W (8 Ω, 20 Hz-20 kHz, FTC)
Surround L/R : 65 W + 65 W (8 Ω, 20 Hz-20 kHz, FTC)
Surround back : 65 W (8 Ω, 20 Hz-20 kHz, FTC)

Dynamic Power(front)
3 Ohms : 160 W/ch
4 Ohms : 125 W/ch
8 Ohms : 85 W/ch

Total Harmonic Distortion : 0.08 % (at rated power)
Frequency Response : 10 Hz-100 kHz (+ 1 dB, - 3 dB)

Signal-to-Noise Ratio
Line In: 100 dB (IHF-A)

Damping Factor : 60 at 8 Ohms

Input Sensitivity and Impedance
Line : 200 mv, 50 kOhms
Multi Channel Input: 200 mV, 50 kOhms; Subwoofer: 36 mV, 50 kOhms
Digital Input Coaxial : 0.5 Vp-p, 75 Ohms
Video: 1 Vp-p, 75 Ohms (Component and S-Video Y, Composite); 0.7 Vp-p, 75 Ohms (Component Pa/Ca, Pr/Cr); 0.28 Vp-p, 75 Ohms (S-Video C);

Output Level and Impedance
Rec out (TAPE, VIDEO 1) : 200 mV, 470 Ohms
Pre out (SUBWOOFER): 1 V, 470 Ohms
Video : 1 Vp-p, 75 Ohms

Tone Control
Bass :± 10 dB at 50 Hz
Treble : ± 10 dB at 20 kHz

TUNER SECTION
Usable Sensitivity
FM Mono : 11.2 dBf, 1.0 µV (75 Ohms IHF)
FM Stereo : 17.2 dBf, 2.0 µV (75 Ohms IHF)
AM : 30 µV

Signal-to-Noise Ratio
FM Mono : 76 dB, IHF-A
FM Stereo : 70 dB, IHF-A
AM : 40 dB

Total Harmonic Distortion
FM Mono/FM Stereo/AM : 0.2 %/0.3 %/0.7 %
FM Stereo Separation : 45 dB at 1 kHz/30 dB at 100 Hz-10 kHz

GENERAL
Dimensions (W x H x D) : 435 x 150 x 376 mm
Weight : 9.9 kg
