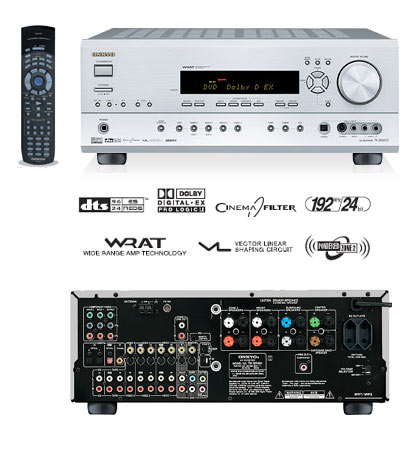

Onkyo TX-SR601 6.1-Channel A/V Surround Receiver Silver

Built on the foundation of Onkyo quality, the TX-SR601 provides an all-encompassing home entertainment experience to bring out the best in your movies and music. Quality amplification is the key to pure audio enjoyment.

The TX-SR601 provides not only a pulse-pounding 150 watts of power, but also Onkyo exclusives such as WRAT (Wide Range Amplifier Technology) and VLSC (Vector Linear Shaping Circuitry). These work with the latest sound formats, such as Dolby Digital EX, DTS-ES and DTS 96/24, to create a truly diffuse sound field.

All of this power is provided by a newly designed High Current Power Supply (H.C.P.S.) transformer to anchor an impressively built receiver that stands above the competition. Combine this with user-friendly features such as color-coded inputs and outputs, crossover adjustment for bass management and quality build featuring a sturdy Absolute Ground Plate and bus bars, and you have a new definition of what "industry standard" means.

More information is available here.

CinemaFILTER
Restores the correct tonal balance of a movie soundtrack in the smaller environs of your home.

Optimum Gain Volume Circuitry
Less than half the typical amount of attenuation is needed, so signals never come close to the noise floor.

Powered Zone 2
Enjoy a stereo source in the main room and another in a separate room without an additional amplifier.

User-Friendly Design
Onkyo always considers ease of use. Color-coded multichannel inputs, pre-outs and dual banana plug compatible speaker posts take the guesswork out of matching the correct wires to the correct terminals–you get fast and easy connection. Also, Crossover Adjustment for bass management lets you set the crossover frequency at 60, 80, 100, 120 or 150 Hz, depending on your speakers’ bass playback ability. Plus, a preprogrammed, learning remote gives you comfortable control.

POWER OUTPUT
Front L/R: 150 W/ch
Center : 150 W
Surround L/R : 150 W/ch
Surround back : 150 W/ch

Dynamic Power(front)
3 Ohms : 220 W/ch
4 Ohms : 165 W/ch
8 Ohms : 110 W/ch

Total Harmonic Distortion : 0.08 % (at rated power)
Frequency Response : 10 Hz-100 kHz (+ 1 dB, - 3 dB)

Signal-to-Noise Ratio
Line in : 100 dB (IHF-A, 0.5 V input)
Phono : 80 dB (IHF-A, 5 mV input)

Damping Factor : 60 at 8 Ohms

Input Sensitivity and Impedance
Line : 200 mv, 50 kOhms
Multi Channel Input: 200 mV, 50 kOhms; Subwoofer: 36 mV, 50 kOhms
Digital Input Coaxial : 0.5 Vp-p, 75 Ohms

Output Level and Impedance
Rec out (TAPE, VIDEO 1/2) : 200 mV, 470 Ohms
Line Out: 100 mV, 470 Ohms (Zone 2)
Pre out : 1 V, 470 Ohms
Video : 1 Vp-p, 75 Ohms

Tone Control
Bass :± 10 dB at 50 Hz
Treble : ± 10 dB at 20 kHz

TUNER SECTION
Usable Sensitivity
FM Mono : 11.2 dBf, 1.0 µV (75 Ohms IHF)
FM Stereo : 17.2 dBf, 2.0 µV (75 Ohms IHF)
AM : 30 µV

Signal-to-Noise Ratio
FM Mono : 76 dB, IHF-A
FM Stereo : 70 dB, IHF-A
AM : 40 dB

Total Harmonic Distortion
FM Mono/FM Stereo/AM : 0.2 %/0.3 %/0.7 %
FM Stereo Separation : 45 dB at 1 kHz/30 dB at 100 Hz-10 kHz

GENERAL
Dimensions (W x H x D) : 435 x 175 x 432 mm
Weight : 13.0 kg
