Power Adapter Ad6008,DA-30C01,RS-E02AB for WD HD & more

Power adapter AD6008, DA-30C01, RS-E02AB compatible

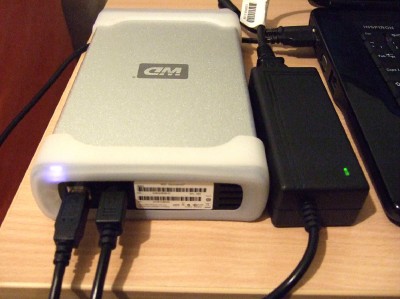

This power adapter is the same as 'AcBel Ad6008', 'RS-E02AB' and  'DA-30C01' and is used for WD Element 500G, 650G hard drives & more devices. In the photo, you can see how it works with WD Element 650G hard drive.

It’s suitable for some external devices such as some models of Western Digital Elements hard drives and more devices. I have used it and I think it's very reliable. I have tried to switch on it continuously for 72 hours and it still worked very well and not really hot.

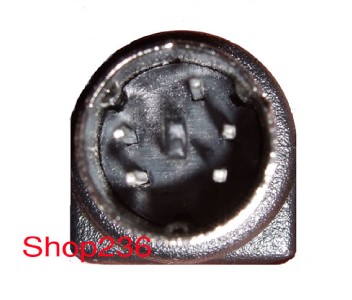

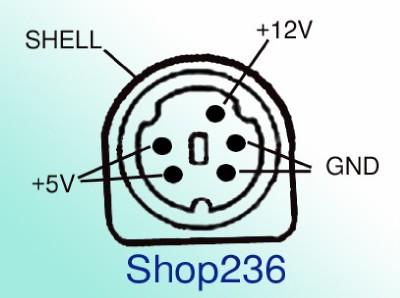

Although it’s the same as AcBel AD6008, RS-E02AB  and APD DA-30C01 in appearance, in order to make sure you buy the correct adapter, please look at the wiring diagram as shown in the photo to see whether it’s same as yours. If the wiring method is not exactly the same, then it will not work. The position of the +5v, +12v and GND must be the same as shown in the photo.

From our feedbacks, you will find that it works 100%.

Specifications:

INPUT : 100-240V, 50-60Hz

0.85A Max. 50VA-80VA

OUTPUT : 5Vdc --- 1.5A

12Vdc --- 1.5A

L.P.S. (Limited Power Source)

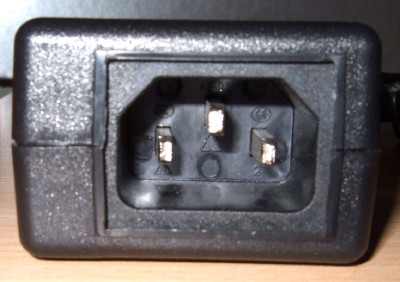

In order to minimise the costs, we only sell the adapter, not the power cable as it uses most standard computer power cable (see the socket of the adapter) and you can buy it easily in your country. If you are not sure about it, please ask us.

Thank you for looking and good luck!
