5.8GHZ Audio Video Sender Kit
If you have always wanted to distribute audio and video to a second room but have avoided doing so because of the cost and difficulties surrounding running cables, the easy answer has arrived. The AVS5800C 5.8GHz Wireless AV Sender with IR Extender transmits clear audio and video signals over RF (radio frequency), so there are no wires to run, and since this is the first ever 5.8GHz band product of its kind, you’ll avoid the interference associated with crowded lower-frequency band applications, such as 802.llb/g/n wireless, cordless phones, and microwaves. You’ll even be able to control your components using your existing remote, since the 5.8GHz Wireless AV Sender includes an IR extender, transmitting your remotes signals to the receiver in the room with your components.
Pickup
Pickup is welcome for this item, see below for details
Features
- Watch DVDs, Digital TV, Pay TV and more from any room in your home.
- 5.8GHz bandwidth
provides higher quality signal strength and quality compared to traditional 2.4CHz AV senders - Built-in IR receiver
allows you to use your existing remote control from any room to operate your devices. - 4 selectable channels
avoids interference from other receivers - Up to 90 metres
with clear line of sight between the transmitter and receiver! - Multi-receiver support
Spare receivers available! Add more receivers to expand your coverage!
Model: AVS5800CSP - Foxtel compatible IR
- Crystal clear video and high fidelity stereo
The extra powerful 5.8GHz transmission strength allows you to enjoy perfect picture and sound - Interference free
Avoid interference from the crowded 2.46Hz band
(WiFi, Bluetooth, Cordless phones and more...)
Specifications
- Brand: Pro.2
- Model: AVS-5800C
- Dimensions: Transmitter and receiver: 123 x 131 x 41mm
- Range: 90 meters line of sight
- Signals supported: PAL or NTSC TV
- Operating Frequency: 5725-5825 MHz
- Channels: 4
- Channel Frequency:
Channel 1: 5745 MHz
Channel 2: 5765 MHz
Channel 3: 5785 MHz
Channel 4: 5805 MHz - Frequency Stability: ±250 KHz
- DC Power Input: 9V±10%
- DC Input Current Consumption: < 500 mA
- IF Frequency: 479.5 MHz
- IF Bandwidth: 18MHz

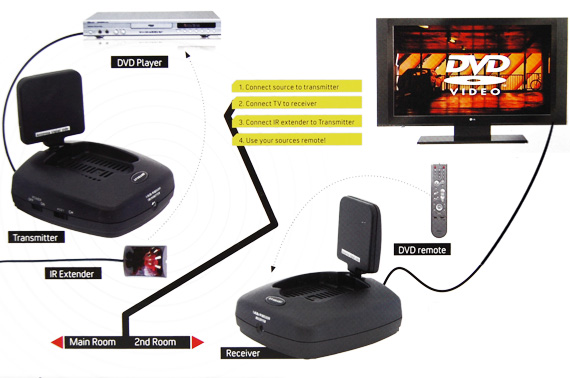

- How to use
Connect source to transmitter
Connect TV to receiver
Connect IR extender to Transmitter
Use your sources remote

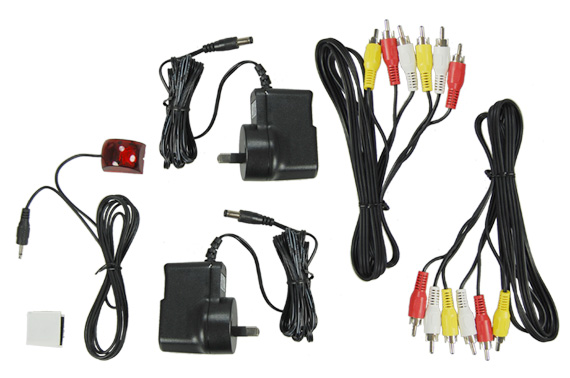

Package
- 1 x 5.8GHz transmitter
- 1 x 5.8GHz receiver
- 1 x IR Extender
- 2 x Fasten strips
- 2 x 9V DC power supplies
- 2 x RCA cable
- 1 x Manual
Warranty
- 12 months
