RF Wireless Remote Control Radio Controller / Switch 12

RF Wireless Remote Control Radio Controller / Switch-12

 Main Function:

• Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars or Other Appliances with voltage AC 110~240V or DC 0~28V.
• You can turn on/off the receiver with transmitter (remote control) from any place, the wireless signal can pass through walls, floors, and doors.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bits code.
• One/several transmitters can control one/several receivers.
• If you use two or more receivers in same place, you can set them with different codes.
• Transmitting Frequency: 315MHz/433MHz.

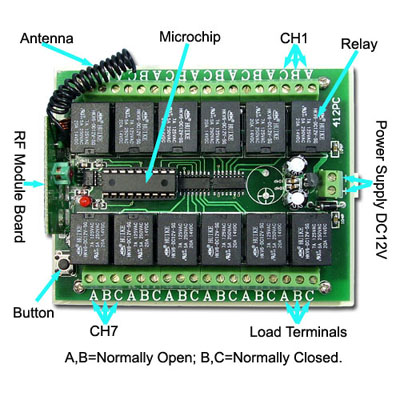

Specification of receiver:

• Model No: S12C-DC12
• Channel: 12 CH
• Control Types: Toggle, Momentary, Latched, Toggle+ Momentary
• Decode: Learning code
• Power Supply (Operating Voltage): DC12V
• Relay: 10A/120VAC, 20A/14VDC
• Work Voltage Range of Relay: AC 110~240V or DC 0~28V
• Receiver Box Size: 100mm x 80mm x 30mm
• State current: ≤6mA

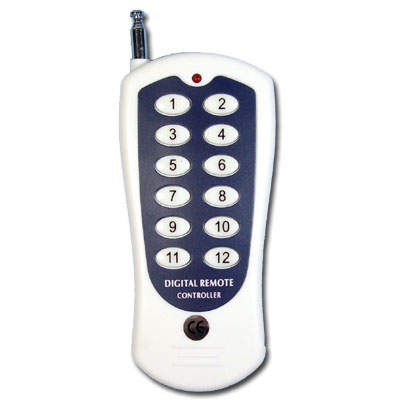

Specification of Transmitter:

• Model No:C-12
• Channel: 12CH
• Remote control distance: 1000m-3000ft
• Encode: Fixed code, Soldering
• Size: 125mm x 49mm x 20mm
• Power Supply: 1 x 23A-12V battery (included)

Control Types:

• Toggle: Press->On; Press again->Off
• Latched: Press->On; Press other button->Off
• Momentary: Press and hold->On; Release->Off
• Toggle + Momentary: channels 1~6 for Toggle, channels 7~12 for Momentary.

Package Includes:

• 1 x Receiver S12C-DC12 (12 Channels / Four Control Types /DC12V)
• 1 x Transmitter: C-12
• 1 x Instruction of usage.

Package include:

• 12CH receiver & SwitchX1
• 12CH Transmitter X 1

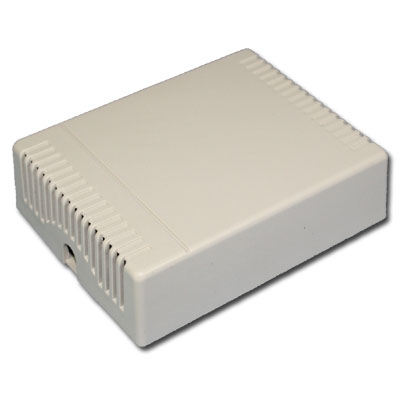

Box-6 for Receiver	C-12-2 (1000 metres)

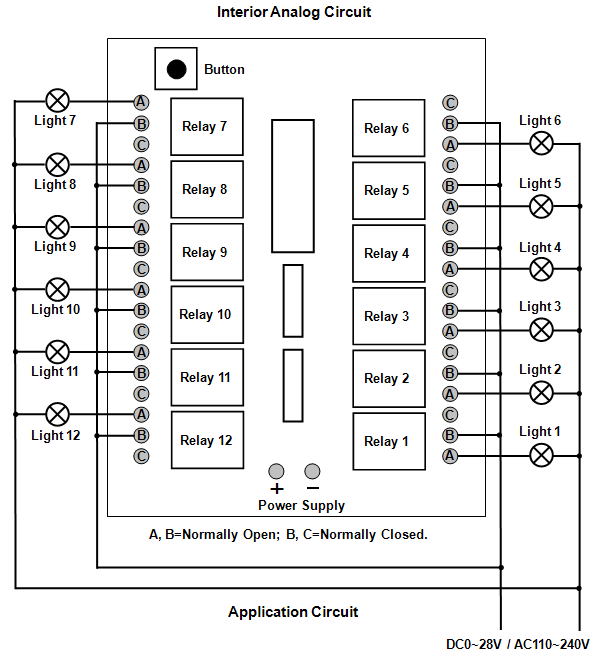

Circuit diagram
