Item:Reversing / Rear View Monitor + camera car/ caravan NEW

Reversing / Rear View Monitor + camera car/ caravan NEW

Item condition:--
Ended05 Nov, 200920:38:19 AEDST
Bid history:0 bids
Starting bid:AU $140.00
Postage:FREE postage ExpressSee more services

Country:
Postcode:
Service and other details:
Service
Estimated delivery*
Price
Express
varies
Free
*The estimated delivery time is based on the seller's handling time, the shipping service selected, and the payment method selected. Sellers are not responsible for postage service transit times. Transit times may vary, particularly during peak periods.

 See discounts

 |  See all details
Estimated delivery time varies. This service delivers within 1-3 days after seller sends item
Payments:
PayPal, Money order/Bank cheque, Bank Deposit | See details

A reserve price is the minimum price the seller will accept. This price is hidden from bidders. To win, a bidder must have the highest bid and have met or exceeded the reserve price.


Seller info
zarinaexports ( 952) Member is a PowerSeller
99.1% Positive feedback
Other item info
Item number:350271733224
Item location:Melbourne, Australia
Posts to:Australia, N. and S. America, Europe, Asia, New Zealand
 SharePrintReport item
 Description Postage and payments
Last updated on 10:30:56 AEDST, 31 Oct, 2009 View all revisions
Visit my eBay store

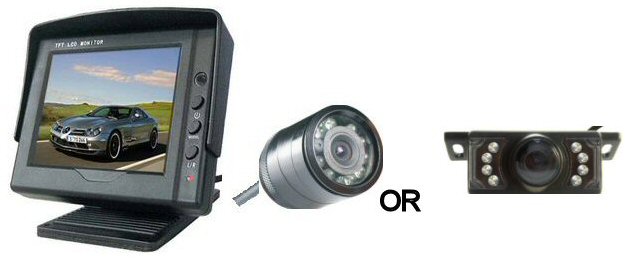

Complete set up!!.  The 3.5" monitor has a special sunshield accross the top for great vision when reversing.  The Monitor will turn on when the car is in reverse.  SIMPLY CHOOSE WHICH CAMERA YOU WOULD LIKE!

1) Screen size: 3.5 " DIGITAL TFT LCD with brand new panel (nearly all LCDs are only analogue!)
2) 2 video input for rearview camera with 2nd camera option for caravan
3) Blue screen function when no signal
4) 12V supply
5) Normal /mirror image adjustable
6) CMOS Camera for 90 degree (natural viewing angle) with Infra Red LEDs
7) 5M cable is supplied so it will fit most cars.
8) This monitor can be left on whilst driving for extended periods of time

Simply choose if you would prefer the bullet / number plate camera.  The type of camera will depend on your personal taste and vehicle type.


Goods are posted in Express Bags for immediate delivery.



Second camera option for caravan. This option comes with RCA cable for car (5M) + RCA cable for Caravan 10M.
If you would like to take up this option please state if you wish this camera in either Black or White.
The total cost for the second camera and cables is $80 when sent with the above monitor or $95 when sent seperately.
A high quality CCD version of this camera with cables is $140 when sent with the above unit or $150 when sent by itself.
If you would like only this camera in CMOS then please add $60 with caravan length cables or $55 for car length cables.
For CCD add $120 for a caravan and $115 for a car.





COLOR CMOS SENSOR SPECIFICATIONS

Image Device:  OV7910
TV System: NTSC
Effective Pixels:  628 x 582 pixels / 510 x 492 pixels
Sensing Area:  5.78mm x 4.19mm / 4.69mm x 3.54mm
Scanning System: 2:1Interlace
Sync. System:   Internal
Resolution:  380TV lines
Horizontal Sync. Frequency: 15.625KHz  / 15.734KHz
Vertical Sync. Frequency :  50Hz  / 60Hz
Minimum Illumination: 0 Lux/F1.2 with IR
Video Output: 1.0vp-p, 75Ohm
Microphone:  Yes
Gamma Consumption:  0.45
AGC:  Auto
S/N Ratio:  Better than 48dB
White Balance:  Auto
Electronic Shutter: 1/60~1/15,000 Seconds
BLC:  Auto
Current Consumption:  200mA
Power Supply:  DC12V
Operating Temperature:  -10°C~46°C , RH95% MAX
Storage Temperature:   -30°C~60°C,RH95% MAX
Lens: f=6.0mm / F = 2.0
Lens Angle: 92° for natural vision

 IF YOU WISH TO TAKE UP THE SECOND CAMERA OPTION PLEASE CONTACT US BEFORE BIDDING TO ENSURE STOCK IS AVAILABLE VIA THE ASK US NOW LINK BELOW!

GENERAL CONNECTIONS FOR ALL MONITORS:

Both Camera and monitor need to be powered by connecting
Red - Positive
Black - Negative
If the cable does not have Red/Black wires then you will need to test using a millimeter.  The inside of the plug is positive, the outside negative


Some monitors also have a green wire which, when connected to the positive side of the reversing light will make the camera display on input no 2.  If connecting a second camera then this wire should not be connected (or a simple switch put in to disable it when the second camera is connected).   The monitor can be manually turned on to display the camera at any time and can be left on whilst driving.

The connection between the camera and the monitor is via a simple RCA cable.  Only the YELLOW is used.

If more instructions are needed then you should be getting this unit professionally installed
Of course all items supplied should be tested BEFORE installation.





If you have any questions please click on the icon below so that we can keep a message history and respond a lot quicker




Powered by eBay Turbo Lister
Questions and answers about this item
 Q: Hi im looking for a sharp reversing camera with night vision to install for my truck which is 8mtrs long. Can you please tell me the costs in euro for such a camera with sufficient cable to be installed. Also please quote me... Continue reading
A: for a 8M truck you really should get a professional system. You should check out www.brashimports.com.au as they haev extremely good quality goods at very good pricing.
