Features

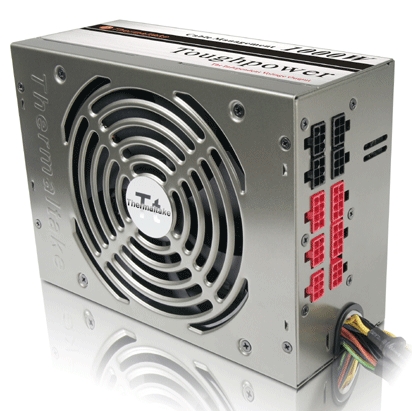

The 1000W Toughpower Power Supply is built specifically towards high-end systems to get the utmost performance from your PC. With three of the latest 8-pin PCI-E connectors (downward compatible with the existing 6-pin connectors) this power supply is ready to be used with the next generation nVidia and ATI Graphics cards. These new connectors Allows for support of up to 3 high-end graphic cards.
Stable 1000W continuous output (at 50ºC operating environment)
Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4) provides superior performance for PC system
NEW! Three 8pin and three 6pin PCI-E connectors design supports Multi-GPU Graphic card
Supports Dual Core CPU / Quad Core CPU / Nvidia SLI & Quad SLI and all Multi-Core GPU technologies
Modularized Cable Management to eliminate clutter and improve airflow inside the case
Independent Voltage Circuit: offers unflappable current delivery under heavy load
Strict voltage regulation (±3%): provides steady voltage for system
Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%)
Industrial grade components (capacitor, transformer, etc)
High reliability: MTBF>120,000 hours
Quiet and reliable 14cm ball-bearing fan
Protections: Over Current, Over Voltage, Under Voltage, Over
Temperature, Over Power, and Short-Circuit protection
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified
Specification
Model: W0132
Power: 1000W
Dimension: 200mm(L)x160mm(W)x86mm(H)
Switches: ATX Logic on-off additional power rocker switch
PFC: Active PFC (PF > 0.9)
Cooling System: 140mm Fan, 2300RPM ± 10%
Noise: 16 dBA at 1300 RPM
P. G. Signal: 100-500 ms
Efficiency: up to 87%
Hold-up Time: 16ms
|
