U381 LCD Code Scanner + OBD 2 Adapter for BMW 20-Pin

NEW VERSION U381 Super OBDII/EOBDII Memo Scanner

+

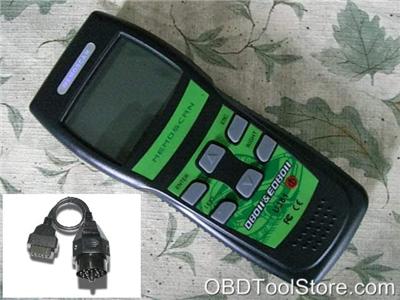

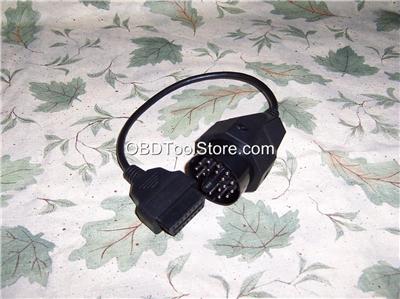

OBDII (female) to BMW 20-Pin Adapter

**Error Code Definitions displayed

on the LCD screen**

**No need to cross-reference with code book**

**Live Data**

**NEW SOFTWARE UPDATE FUNCTION**

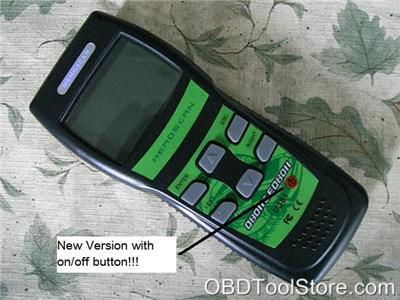

Note: New Version had an additional On/Off Power Button!

A.       Tool Description:

A.1      LCD Display -, 128x64 pixel display with contrast adjustment, Backlit.

A.2      “ENTER” key – for selection of different functions.

A.3      “ESC” key – to go back to the previous screen.

A.4      “UP” & “DOWN” arrows – to move the selection pointer and scrolls up or down the menu.

A.5      “LEFT” & “RIGHT” keys – for selection of responses and move cursor.

A.6      On/Off Power Button – for performing software update process.

A.7      OBDII connector cable – for connecting scan tool to the vehicle’s Data Link Connector “DLC”.

A.8     Battery compartment.

B.       Product Specifications.

B.1      Display - Backlit LCD, 128x64 pixel display.

B.2      Operating Temperature - 0 to 50°C.

B.3      Internal Power - 9v Cell.

B.4      External Power: 10.0 to 15.5 volts provided via vehicle battery.

B.5      Dimensions: 195mm Length x 81mm Width x 32mm Height.

B.6     OBDII connector cable, 1500mm length.

(Note: Not compatible to CAN-BUS Protocol!)

C.       Product Features.

C.1      Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO and KWP 2000 protocols).

C.2      Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs).

C.3      DTCs definition displayed on the LCD screen, no need to cross-reference with code book.

C.4      Reading Live Data

C.5      Reading Freeze Frame Data.

C.6      Testing I/M Reading Status.

C.7      Reading Vehicle Info –VIN (most vehicles built 2000 & up).

C.8      Software Update via Internet (New Function!)

D.       Vehicle Coverage:

D.1      GM '96 - Current Year (OBD-II);

D.2      Ford '96 - Current Year (OBD-II);

D.3      Chrysler '96 - Current Year (OBD-II);

D.4      Toyota '96 - Current Year (OBD-II);

D.5      Honda '96 - Current Year (OBD-II);

D.6      NISSAN '96 - Current Year (OBD-II);

D.7      All other Asian and European '96 - Current Year (OBD-II );

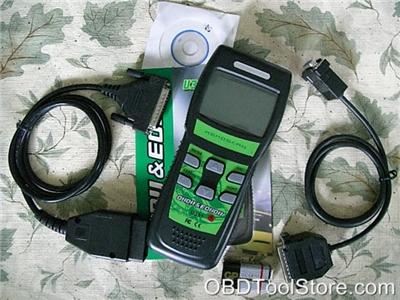

E.       Package Includes:

E.1       U381 Super OBDII/EOBDII Memo Scanner x1;

E.2       1500mm length OBDII Connecting Cable x1;

E.3       COM Cable for connecting U381 to PC x1;

E.4       OBDII (female) to BMW 20-Pin Adaper x1;

E.5       User Manual x1;

E.6       DTC definition CD x1;

E.7     Durable Nylon Storage Case x1.

Note:

This Item is brand new and the description is based on Manufacturer’s information and given to the best of my knowledge.
