UNIDEN UBC 9000XLT 500 CHANNEL BASE SCANNER

UP FOR AUCTION

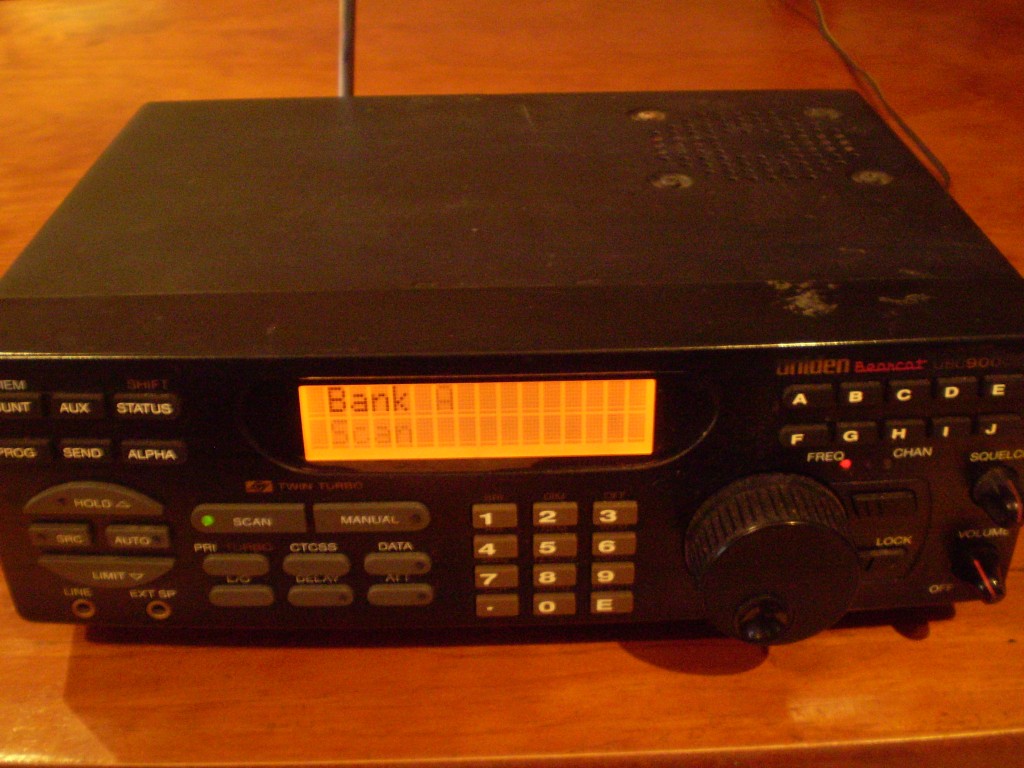

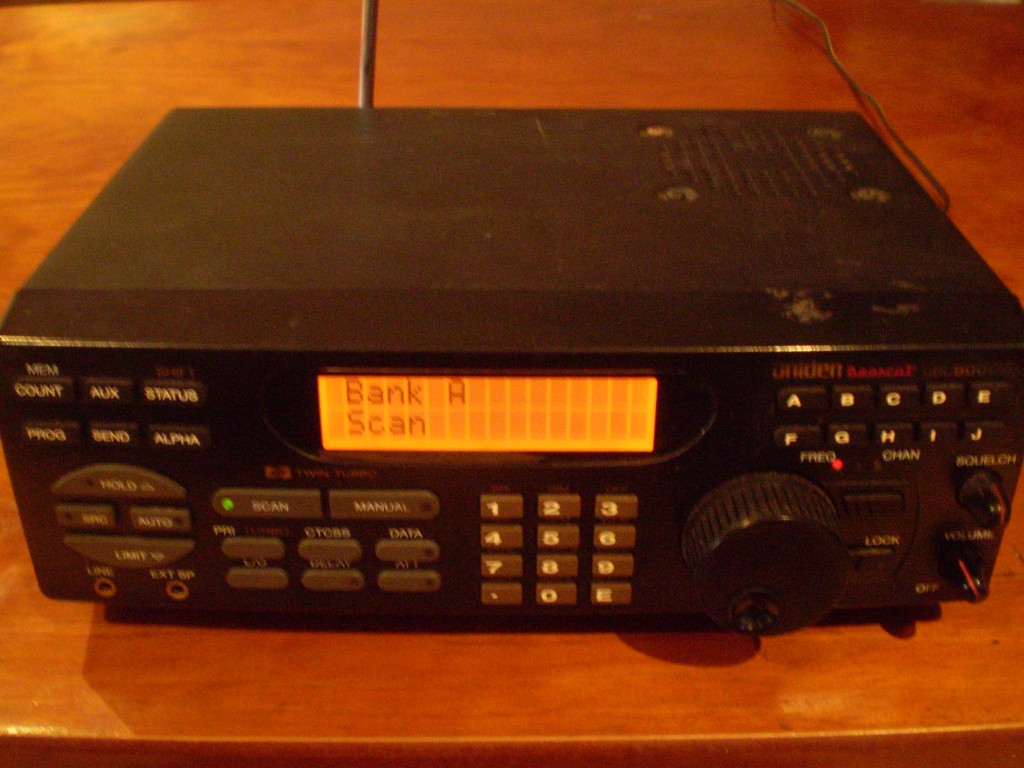

ONE UNIDEN BEARCAT UBC 9000  XLT

500 PROGRAMABLE CHANNELS IN 20 BANKS

WORKS WELL

COMES WITH IN BUILT ANTENNA, POWER SUPPLY 240VOLT

 PLEASE NOTE ONE OF THE FEET THAT CLIPS ON THE BOTTOM IS MISSING

SPECIFICATIONS

Coverage: 25-550 & 760-1300mhz (gap on UHF-tv)

Channels & Banks: 500 Channels in 20 banks. (25 ch per bank)

Scan and search-speed: 100 ch/steps per sek (300 steps/sek with 5khz-steps)

Modulations: AM, NFM and WFM

Steps: 5 12,5 25 50 khz-steps

Priority-channels: 10, one in each 10 first banks, can only have one per bank.
Sensetivity: 25-512 Æ .4µV 118-136, 225-399 Æ 1.0µV406-1300 Æ 0.6µV
Selectivity: -6dB/-50dB AM/NFM 12KHz/25KHz IF's: 380.7/254.4, 58.075, 0.455 MHz

Power supply: 13.8v (included) about 0.7A
Connectors: Antenna (BNC), Audio, Earphone output and tape-control (RCA).
The tape-control can control a cassette-deck that has this feature.
You can select channels on the scanner to record.
Autostore and Autosort: AutoSort automatically sorts the frequencys within all banks
for faster searching, AutoStore stores the frequencys found
automatically in selected bank(s).
Attenuator: Eliminates intermodulation from nearby frequencys etc.
All channels can have it on or off independent.
And it SURE is needed on some spots ;)
Delay: When on the scanner waits for 2sec for a reply.
Can be setted independent for all channels.
See the tricks-area on how to increase it to 4 secs
Lockout: All channels can be locked out independent.
Locked out channels are (OF COURSE) not scanned.
50 Frequencys can be locked out when searching.
When 50 has been reached it starts to overwrite the 1th and so on
No possibility is present to view and change the freqs
other then scrolling thought with the VFO and pres L/O.
Alpha-tagging A alpha-tag can be assigned to the first 250 channels.
What it simply means is that you can assign a "name" to the channels
So it reads "local police ch32" insteed of just 79,5125 etc.
LCD The LCD is of Dot Matrix type with backlite in high, dim and off-modes.
I find it VERY bright and easy to read
Audio Output: 3 Watts @ 8 ohm - ~10% Distortion. Internal speaker is GOOD and gives a LOUD sound.
Size, weight etc: 10"(W) x 4"(H) x 8"(D) or 25cm (W) x 10cm (H) x 20cm (D) Optional stuff: CTCSS Tone, External Speaker Ext, Earphone,
Mobile antenna, DA301 Antenna AS300 Ant, WideBand PreAmp, amped Speaker.

HAPPY BIDDING

PICK UP AVAILABLE FROM ST CLAIR 2759 OR FLAT RATE $15.00

some more info can be found here...
