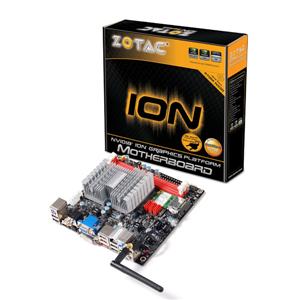

Zotac IONITX-A-U Nvidia ION Intel Atom N330 1.6GHz Fanless Mini-ITX MB w/ DVI, HDMI, eSATA , GLAN

Description:

Zotac IONITX-A-U NVIDIA ION Intel Atom N330 Dual Core Mini-ITX Motherboard with onboard DC/DC Power Converter and 90W AC Adapter

Experience fluid and vivid high-definition video playback with the ultra-compact ZOTAC ION platform. The Mini-ITX form factor ZOTAC ION combines a high-performance NVIDIA ION graphics processor with a power-efficient Intel Atom processor for the ultimate eco-friendly platform that has no troubles handling regular web browsing, e-mail, productivity and HD video playback tasks.

NVIDIA PureVideo HD technology harnesses the power of the ION's 16 high-speed stream processors for high-definition Blu-ray playback capabilities. PureVideo HD technology decodes HD video formats and enhances standard-definition videos with the ION GPU for flawless HD and superior SD video playback.

A host of additional features including fanless operation and HDMI output with 7.1 digital audio output make this motherboard a perfect candiate for silent HTPC (Home Theater PC) applications. Store all of your media with up to 3 x SATA hard drives and never need to worry about running out of space. Built-in Wi-Fi connectivity via MiniPCI-E makes internet and network connectivity a breeze.

The Zotac IONITX-A-U motherboard features a built-in DC-DC power convertor (no seperate power board is necessary). This motherboard is also packaged with its own 90W (19V) AC/DC Adapter. You will not need any separate power supplies (AC/DC or DC-DC) with this motherboard.

Lastly, with longer-than-standard warranty periods, (Lifetime for USA, Mexico, Canada, Latin America), enjoy peace of mind in the longevity of your system.

Motherboard Specifications:

Manufacturer P/N:	IONITX-A-U
Processor:	Integrated Intel Atom N330 Dual-core @ 1.60GHz 533MHz FSB
Chipset:	NVIDIA ION (MCP7A-ION)
L2 Cache:	512KB
Memory:	2 x DDR2 667/800MHz Memory DIMM Slots 4GB Max Capacity
Graphics Interface:	NVIDIA GeForce 9400M Graphics engine clock: 450MHz Shader clock: 1100MHz 16 Stream Processors Microsoft DirectX 10 OpenGL 2.1 NVIDIA PureVideo HD Support NVIDIA CUDA ready NVIDIA PhysX ready
Serial ATA:	3 x SATA 3.0Gbps Ports 1 x eSATA 3.0Gbps Port SATA RAID 0, 1, 0+1
Expansion Slot:	1 x Mini PCI-E (Occupied by Wi-Fi card)
Back Panel I/O:	1 x PS/2 1 x HDMI (w/ 7.1 Audio) 2 x Digital S/PDIF outputs (1 optical, 1 coaxial) 1 x VGA Connector 1 x DVI Connector 1 x RJ45 10/100/1000 Mbits/sec (Gigabit LAN) 4 x USB 2.0 Ports 1 x eSATA 3.0Gbps Port Audio: Line-in, Line-out, Microphone 1 x Wi-Fi Antenna Jack (Antenna included)
Onboard I/O Pin-headers:	4 x USB 2.0 1 x Audio I/O 1 x COM 1 x Fan Header
Form Factor:	Mini ITX 170mm x 170mm
Included in Box:	Zotac IONITX-A-U Motherboard with embedded Intel Atom N330 Dual-core Processor 1 x Chipset/CPU Fan (installation is optional; board can be operated with no fan) 3 x SATA Cables 1 x I/O ATX Back plate 1 x 4-pin Molex to 3 x SATA Power Adapter Cable (For built-in DC-DC converter) 1 x 90W 19V AC/DC Adapter (100-240V) Motherboard Manual + Driver software *Warranty:** 5-Year Warranty (Europe, Middle East, APAC) Extended Warranty (India) Lifetime Warranty (USA, Mexico, Canada, Latin America) *Requires immediate registration @ www.zotac.com
