View of The Motor:

ESC Specification:

• Output: Continuous current 60A, burst current 380A.
• Input: 4-9 cells NiMh/NiCd or 2-3 cells LiPo. Note1
• BEC Output: 6V/1.5A.
• Resistance: 0.00075 Ohm.
• Motor Supported: Sensorless Brushless Motor
• Suitable Brushless Motor: 5.5T and > 5.5T
• Suitable Car: 1/10 on-road or off-road cars / trucks for normal race or sportful race.
• Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
• Weight: 32g(Without wires)

Note1:

• For 4-6 Cell Ni-xx: You needn't change the fan coming with the ESC;
• For 7-9 Cell Ni-xx: You must change the fan because it cannot work with such a high voltage, so please choose a high voltage fan or supply the fan from the receiver (+6V)

Program Card  Specification:

• Thank you for purchasing the program card for the electronic speed controller (ESC) of car. The program card has a friendly user interface, so you can easily set the programmable parameters of the ESC with this device. It is pocket-sized, so you can bring it to the racing field conveniently.

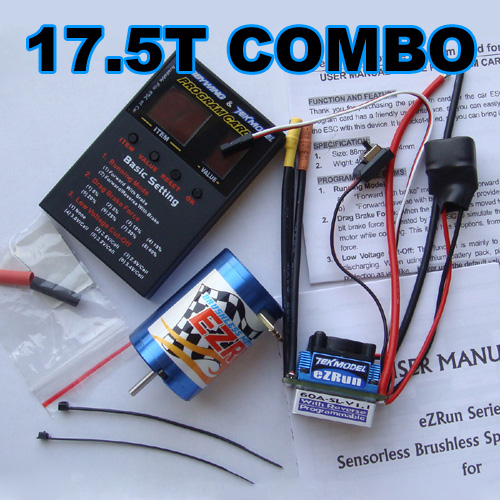

Packing：

• eZRun-60A-SL brushless ESC:  1pcs
• 17.5T sensorless brushless motor: 1pcs
• Program card for car ESC: 1pcs
